DC-DC converters
Calix offers a wide range of voltage converters – A DC-DC converter is used when there is a need to convert one incoming voltage to another outgoing voltage. A common use case is when the onboard battery has 24V or 48V but the output needs to be 12V in order to connect various appliances that run on 12V. Our DC-DC converters are IP67.

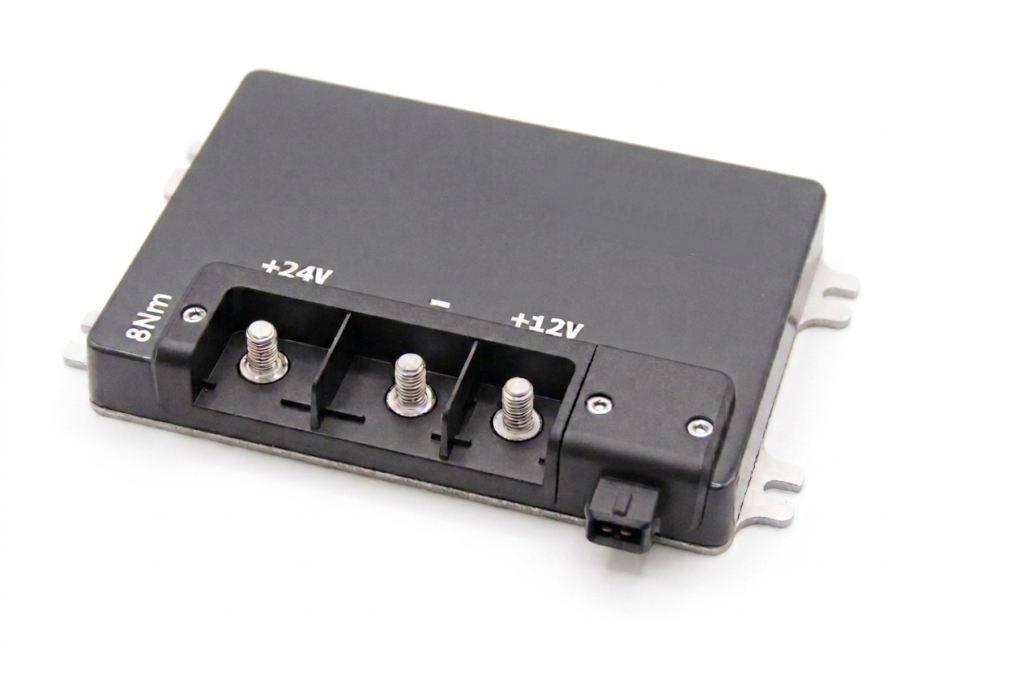

DC-DC EQUALIZER 24V/12V – 100A/150A
Part no. 2411799
The purpose of a battery equalizer is to balance the voltage of two batteries when loads are applied, and to convert 24V to 12V.
Many 24V electrical systems are comprised of two batteries (12V each) connected in series. These batteries will then be connected, and provide power, to 12V and 24V loads.
The DC-DC Equalizer will keep the charging balance between a 12V series-connected battery in a 24V system. By default, the output voltage will have 50% of the supplying voltage.
The input DC voltage conversion is achieved through advanced power-conversion topology and high-quality components. This secures an efficiency of >96%.
The DC-DC Equalizer can be used in a variety of applications, such as agricultural, automotive, and forestry, and the low weight and compact size keep the installation simple.
DC-DC CONVERTER 18-36/12,7V-20A IP21
Part no. 1559896
LxWxH: 116 x 88 x 19,4
Max output current: 20A
Weight: 0,22 kg
IP21
18-36V
Non-isolated
DC-DC CONVERTER18-36V/12,7V-30A IP21
Part no.1559897
LxWxH: 116 x 88 x 19,4
Max output current: 30A
Weight: 0,23 kg
IP21
18-36V
Non-isolated
DC-DC CONVERTER 18-36V/13,5V-30A IP67
Part no. 1559898
LxWxH: 150 x 93 x 31mm
Max output current: 30A
Weight: 0,8 kg
IP67
18-36V
Non-isolated
DC-DC CONVERTER 9-36V/12,5V-16A IP21
Part no. 1559899
LxWxH: 116 x 88 x 19,4
Max output current: 16A
Weight: 0,2 kg
IP21
9-36V
Isolated wide input
DC-DC CONVERTER 9-36V/24,5V-8A IP21
Part no. 1559900
LxWxH: 116 x 88 x 19,4
Max output current: 8A
Weight: 0,2 kg
IP21
9-36V
Isolated wide input
DC-DC CONVERTER 9-36V/12,5V-16A IP67
Part no. 1559901
LxWxH: 150 x 93 x 31mm
Max output current: 16A
Weight: 0,8 kg
IP67
9-36V
Isolated wide input
DC-DC CONVERTER 9-36V/24,5V-8A IP67
Part no. 1559902
LxWxH: 150 x 93 x 31mm
Max output current: 8A
Weight: 0,8 kg
IP67
9-36V
Isolated wide input
DC-DC CONVERTER 18-32V/13,5V-30A IP67
Part no. 1559903
LxWxH: 150 x 93 x 31mm
Max output current: 30A
Weight: 0,8 kg
IP67
18-32V
Isolated
DC-DC CONVERTER 33-65V/13,7V-30A IP67
Part no. 1559904
LxWxH: 150 x 93 x 31mm
Max output current: 30A
Weight: 0,8 kg
IP67
33-65V
Isolated
DC-DC CONVERTER 18-32V/24,5V-16A IP67
Part no. 1559905
LxWxH: 150 x 93 x 31mm
Max output current: 16A
Weight: 0,8 kg
IP67
18-32V
Isolated
DC-DC CONVERTER 9-16V/28,8V-16A IP67
Part no. 1559906
LxWxH: 150 x 93 x 31mm
Max output current: 16A
Weight: 0,8 kg
IP67
9-16V
Isolated
DC-DC CONVERTER 9-16V/28,8V-25A IP67
Part no. 1559907
LxWxH: 150 x 93 x 31mm
Max output current: 25A
Weight: 0,8 kg
IP67
9-16V
Isolated
DC-DC CONVERTER 33-65V/24,5V-16A IP67
Part no. 1559916
LxWxH: 150 x 93 x 31mm
Max output current: 16A
Weight: 0,8 kg
IP67
33-65V
Isolated
